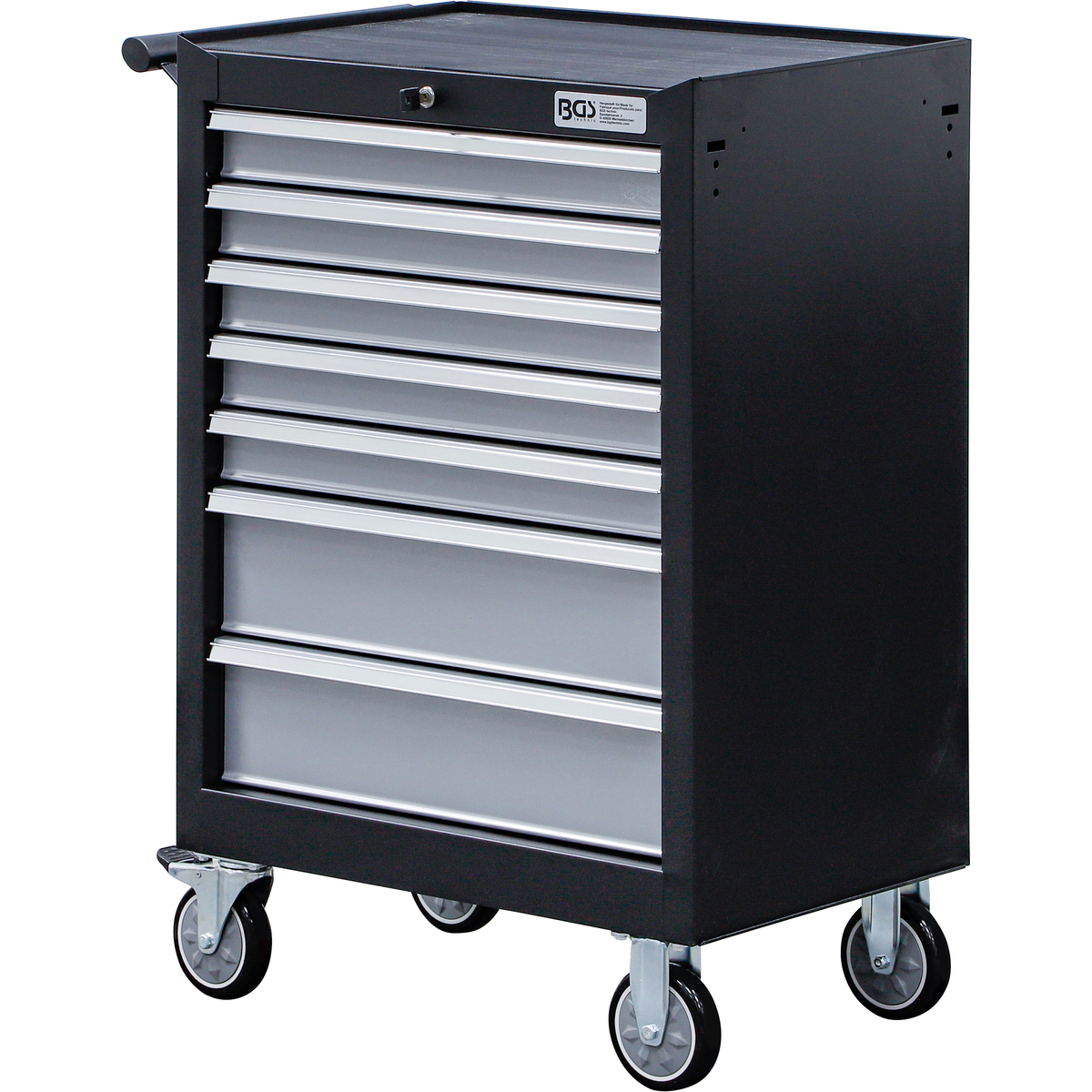

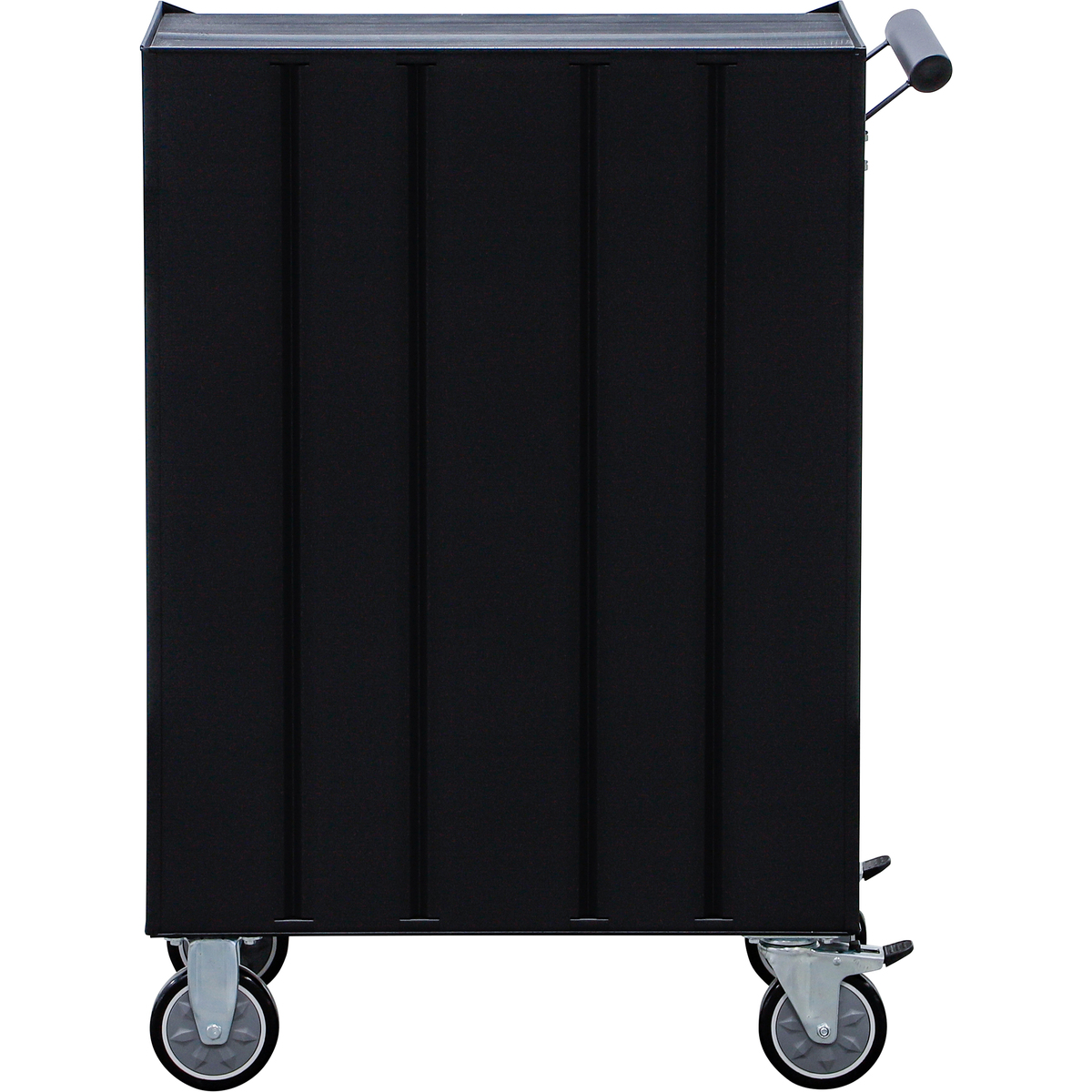

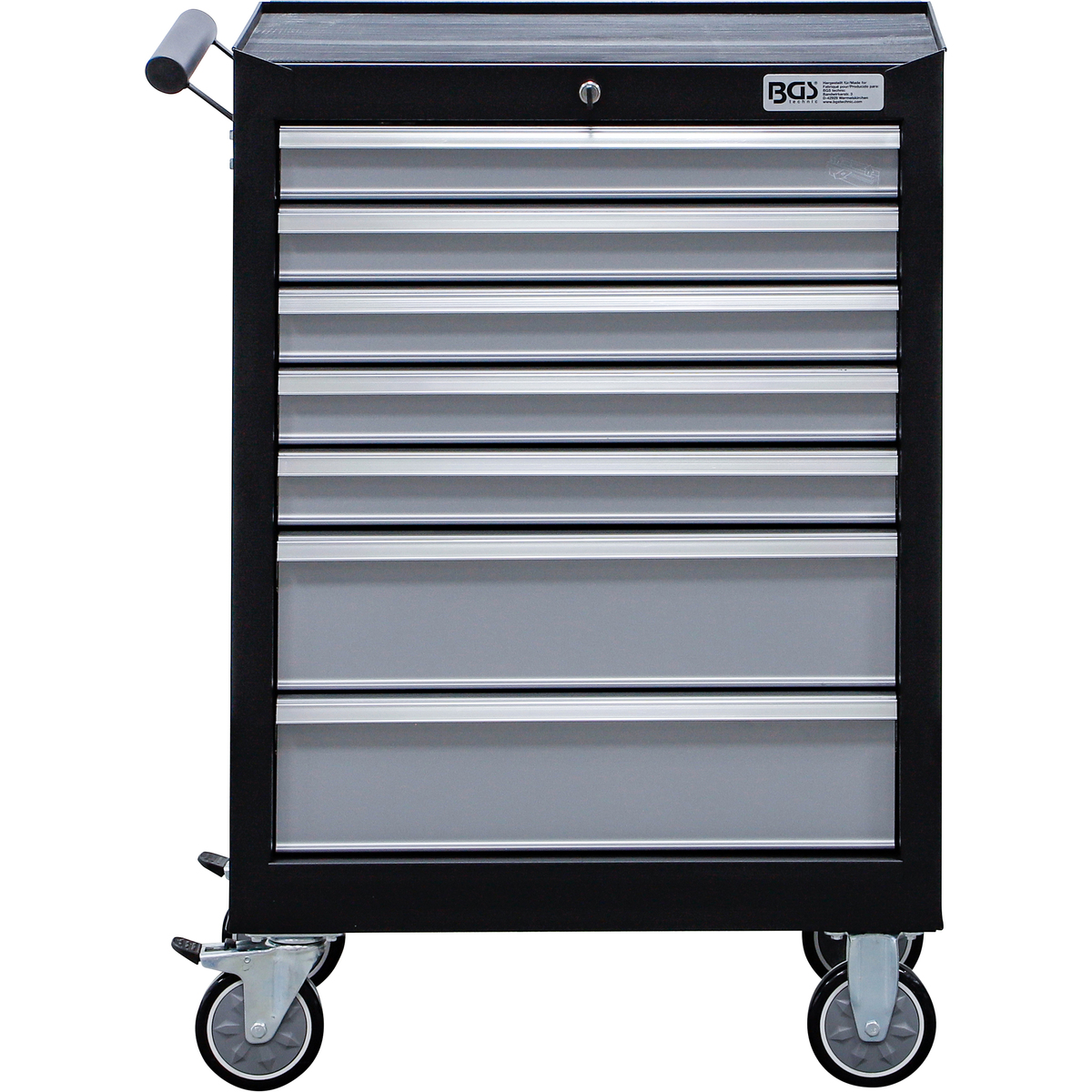

Workshop Trolley | 7 Drawers | Engine Timing Tool Sets

• heavy duty workshop finish
• 6 tool trays, 3/3 made from high-resistance foam (dimensions 567 x 408 x 32 mm)
• stable sheet steel construction
• powder-coated body, particularly resistant to scratches
• heavy-duty, ball-bearing castors, including 2 lockable swivel castors
• with side handle for easy manoeuvring
• lockable with a central lock
• continuous handle strips
• 7 smooth-running drawers with ball-bearing slides:
  • 1st to 5th drawer capacity up to 20 kg (each drawer)
  • 6th to 7th drawer capacity up to 25 kg (each drawer)
• upper plate with rubber cover, capacity up to 50 kg

• drawer width (internal dimension): 565.8 mm
• drawer depth (internal dimension): 398 mm
• drawer height (internal dimension): 5 x 56.5 mm | 2 x 135.5 mm
• wall thickness body: 0.9 mm
• wall thickness drawers: 0.7 mm

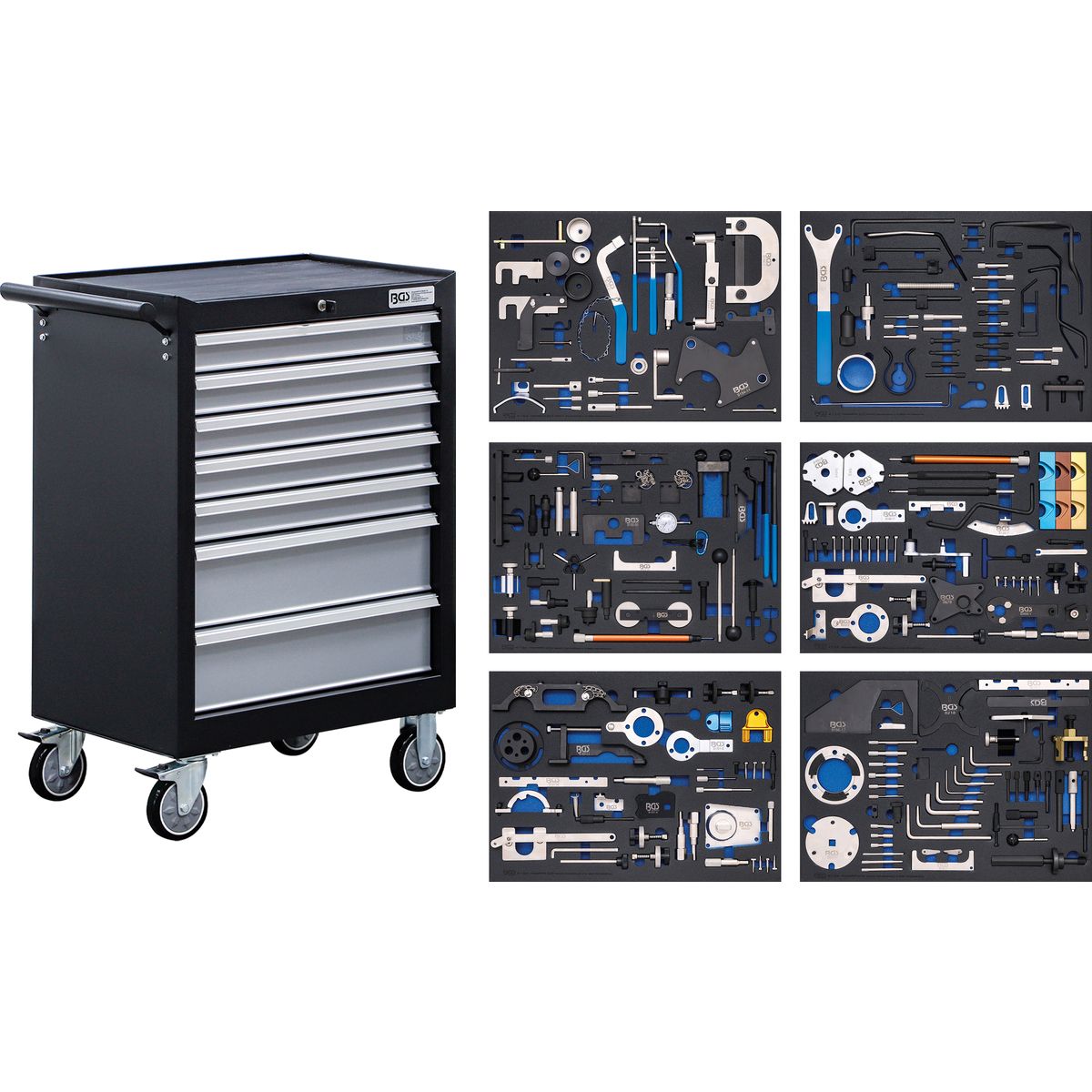

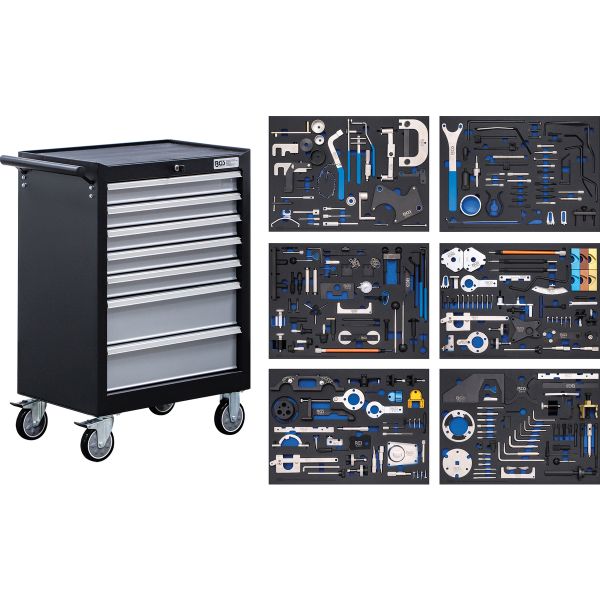

scope of delivery:

• 1 workshop trolley | 7 drawers | empty (BGS4235)

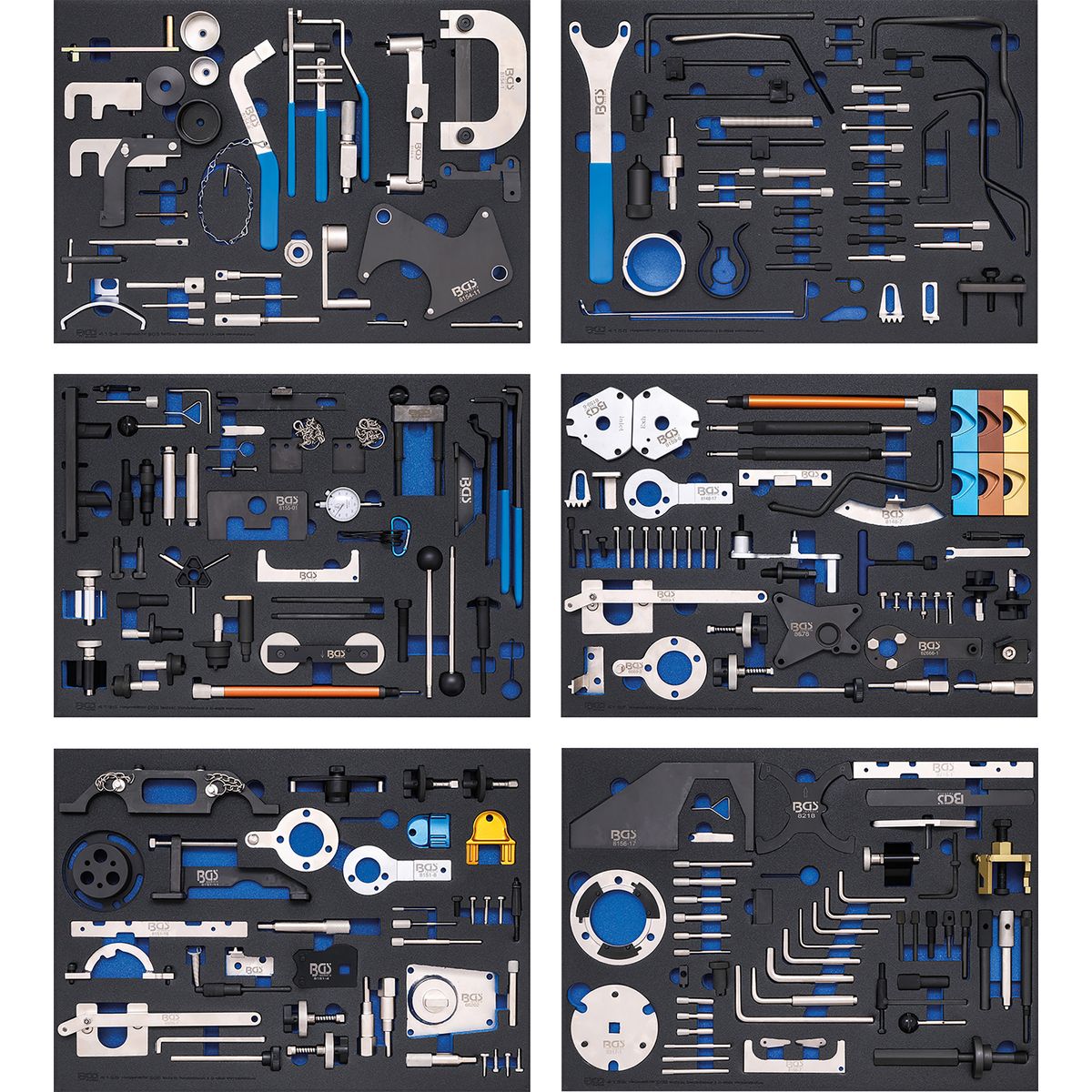

• 1 tool tray 3/3 engine timing tool set | for Renault, Nissan, Opel, Volvo (BGS4134)
• 1 tool tray 3/3 engine timing tool set | for Fiat, Ford, Citroën, Peugeot (BGS4135)
• 1 tool tray 3/3 engine timing tool set | for Ford, VAG, Mazda, Volvo (BGS4136)
• 1 tool tray 3/3 engine timing tool set | for Fiat, Alfa, Lancia, Opel, Suzuki, Ford (BGS4137)
• 1 tool tray 3/3 engine timing tool set | for Opel, Chevrolet, Saab, Fiat, Lancia, Suzuki, Ford (BGS4138)
• 1 tool tray 3/3 engine timing tool set | for Ford, VW, Seat, Mazda, Volvo (BGS4139)

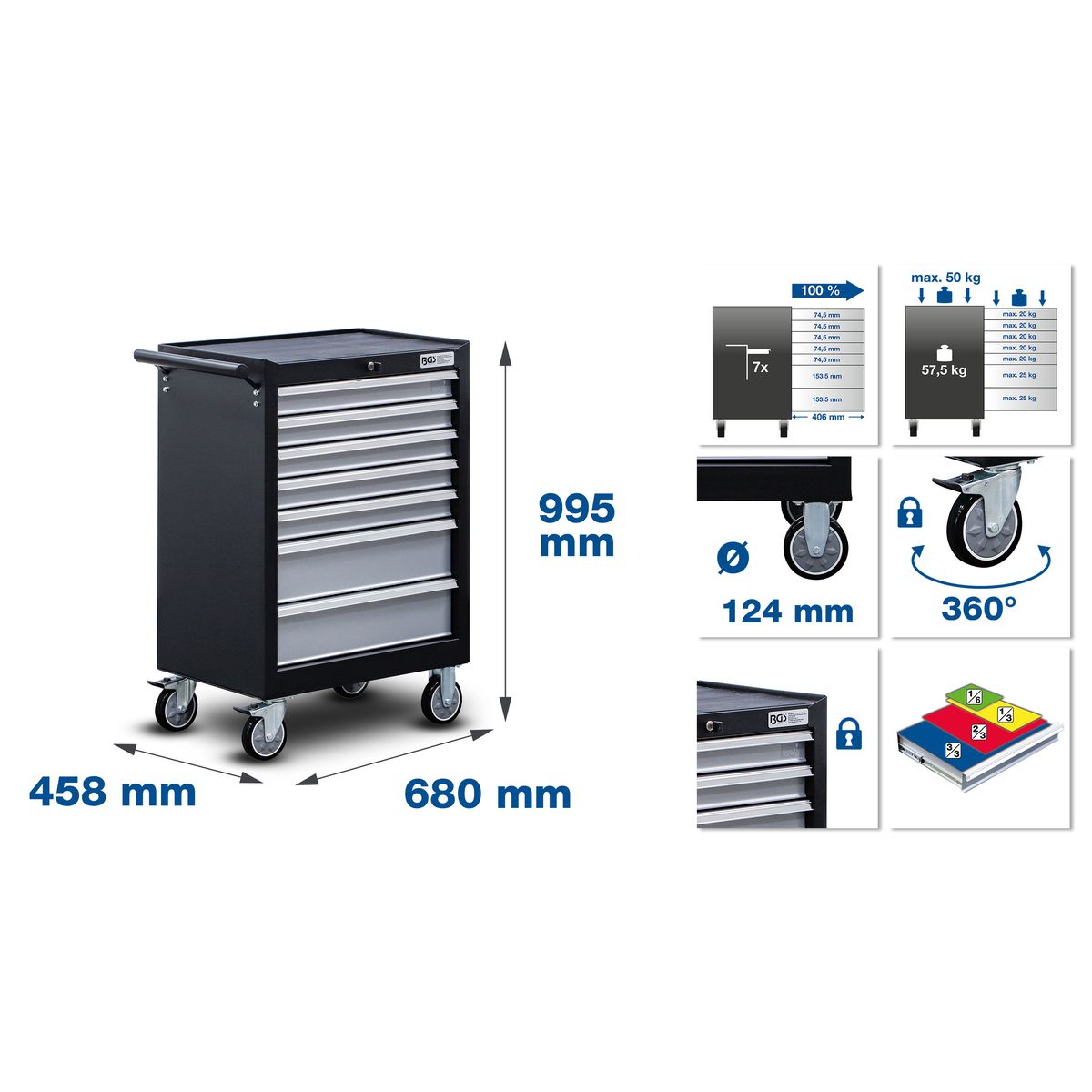

Technical data:

Drawer pull-out: 100 %
Castor diameter: 124 mm
Width: 680 mm
Drawer width: 570 mm
Load-bearing capacity max.: 200 kg
Height: 995 mm
Number of drawers: 7 Piece(s)
Roller width: 31 mm
Drawer height: 5 x 74,5 | 2 x 153,5 mm
Weight: 98050 g
Drawer depth: 406 mm
Depth: 458 mm
