Tool Tray 1/6: Engine Timing Tool Set | for Mercedes-Benz / Chrysler

• includes tools for adjusting the camshaft and and locking the crankshaft (flywheel)

suitable for the following models:

• Mercedes-Benz 190 / C / CLK / E / S / SL / SLK / G / M / Vito / Sprinter / Viano / PT Cruiser / Grand Cherokee

petrol engines:

• 1.8 / 2.0 / 2.2 / 2.3 / 2.5 / 2.8 / 3.0 / 3.2 / 3.3 / 4.2 / 5.0 / 6.0
• with engine codes 102 / 111 /104 (except for AMG) / 119 / 120

diesel engines:

• 2.0D / 2.2D / 2.3D / 2.5D / 2.5DT / 2.9D / 2.9TD / 3.0D / 3.0DT / 3.5D / 3.5DT / 2.0 CDi / 2.2 CDi / 2.3 CDi / 2.7 CDi / 3.2 CDi / 3.5 CDi / 3.9 CDi / 4.0 CDi / 2.2 CRD / 2.7 CRD
• with engine codes 601 / 604 / 605 / 611 / 646 / 612 / 602 / 603 / 606 / 612 / 613 / 646 / 647 / 648 / 628 / 603 / 613 / 628 / 648 / 646 / 602 / 603 / EDJ

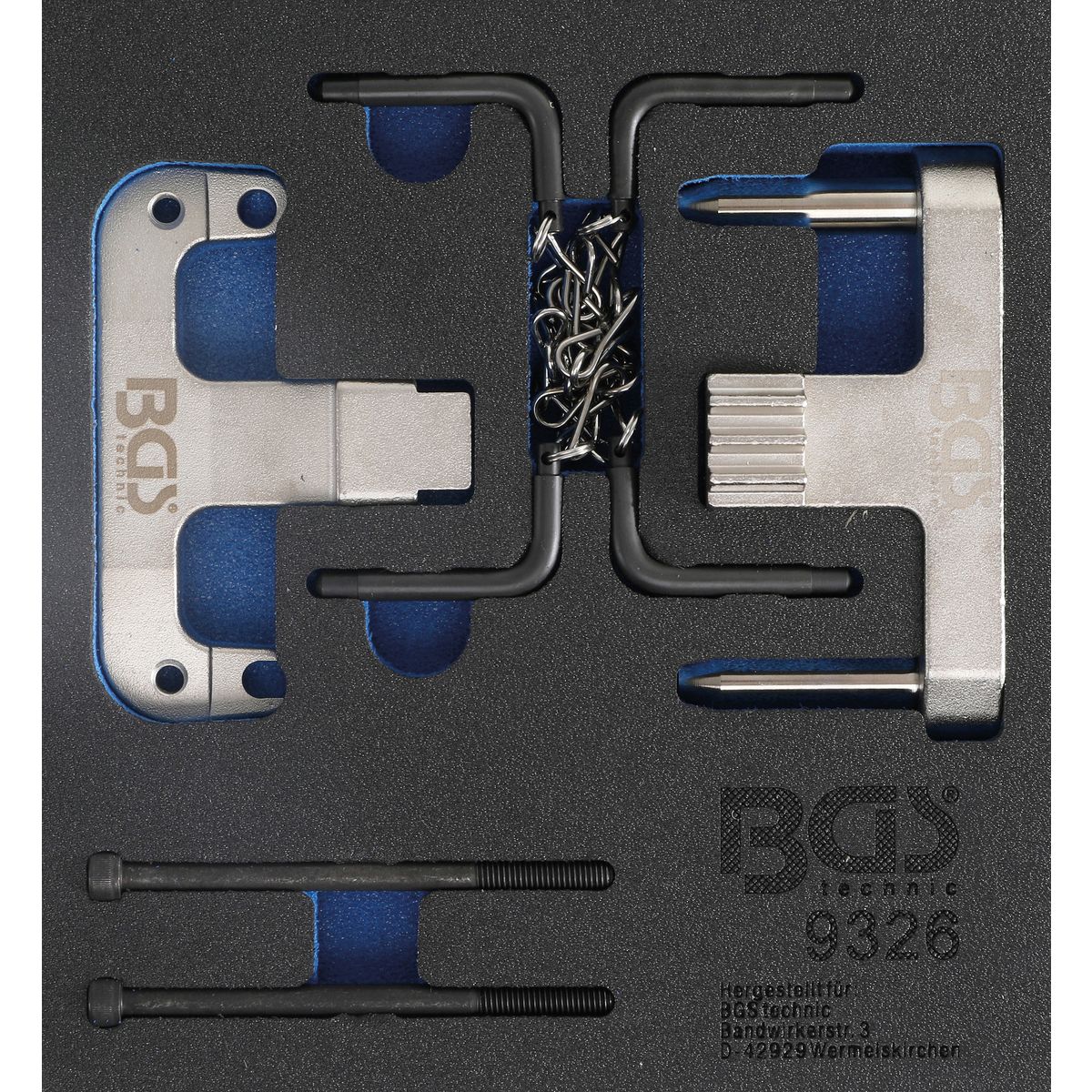

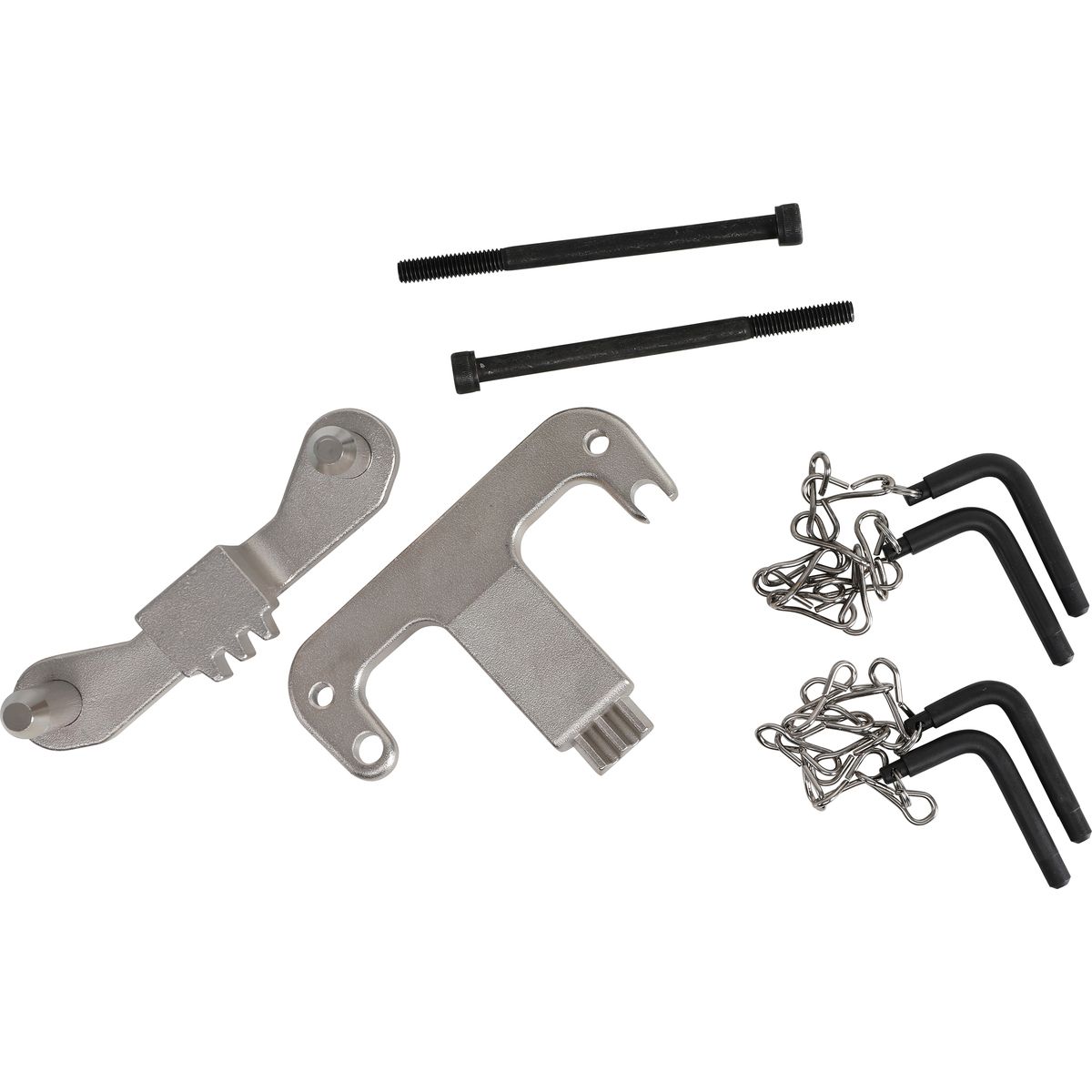

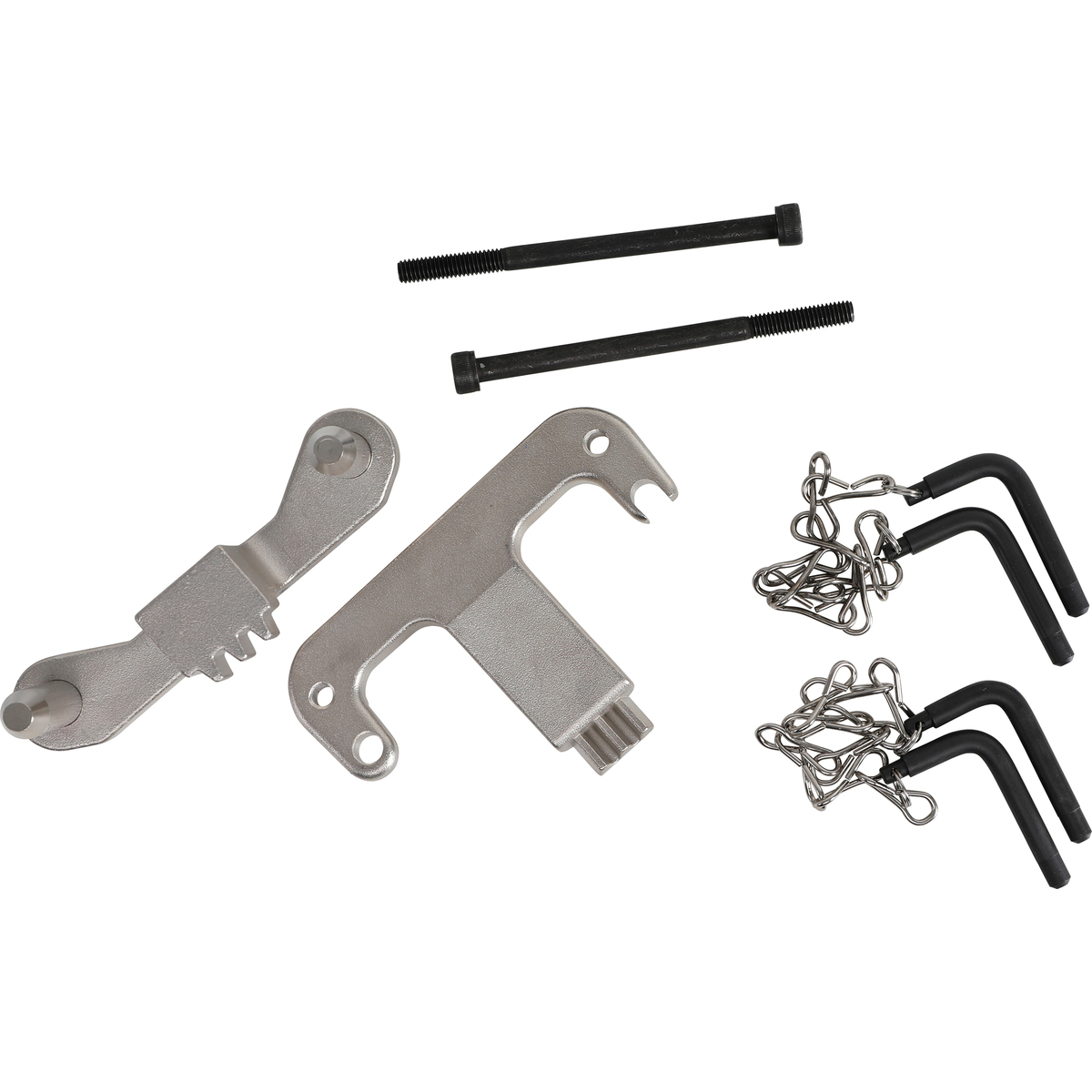

scope of delivery:

• flywheel locking tool, incl. 2 x M6 x 90mm bolts, to be used as OEM 601589024000, 8933
• flywheel locking tool, to be used as OEM 112589034000
• camshaft locking pin set, to be used as OEM 602589004000, 8929

Technical data:

To be used as OEM1: 601589024000 | 8933 | 112589034000 | 602589004000 | 8929 Mercedes-Benz
Gross weight: 880 g
